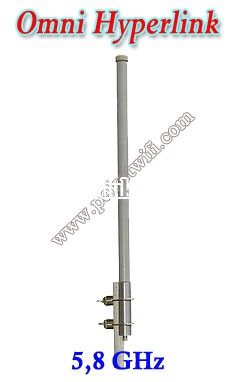

Rugged and Weatherproof
The HG5812U-PRO construction features a heavy duty fiberglass radome for durability and aesthetics. Designed to operate in the harshest of environments, the HG5812U-PRO far exceeds other omni-directional antennas. The included mounting system features heavy-duty mast clamps, allowing installation on masts from 1.4 inches (35 mm) up to 2.0 inches (50 mm) diameter. This antenna features an integral N-Female connector.
Application and Features
Applications :
5.8 GHz UNII and ISM applications
5.8 GHz Wireless LAN systems
WiFi
Multipoint Applications
Features :
Superior Performance
Heavy duty industrial grade design
All weather operation
DC Ground lightning protection
Integral N-Female Connector
Supplied with mast mounting kit
RoHS Compliant
Specification
Electrical Specifications
Frequency 5725-5850 MHz
Gain 12 dBi
Polarization Vertical
Downtilt 0°
Vertical Beam Width 6°
Horizontal Beam Width 360°
Impedance 50 Ohm
Max. Input Power 150 Watts
VSWR < 1.5:1 avg.
Lightning Protection DC Short
Mechanical Specifications
Weight 1.5 lbs (0.7kg)
Length 29.4 in. (0.7 m)
Base Diameter 2.28 in. (57.9mm)
Radome Diameter 2.04 in. (51.8mm)
Radome Material Fiberglass
Mounting 1.4 in. (35 mm) to 2.0 in. (50 mm) diamast
Rated Wind Velocity 137 MPH/S (220Km/S)
Operating Temperature -40° C to 85° C
(-40° F to 185° F)
Connector Integral N-Female
RoHS Comp Yes
